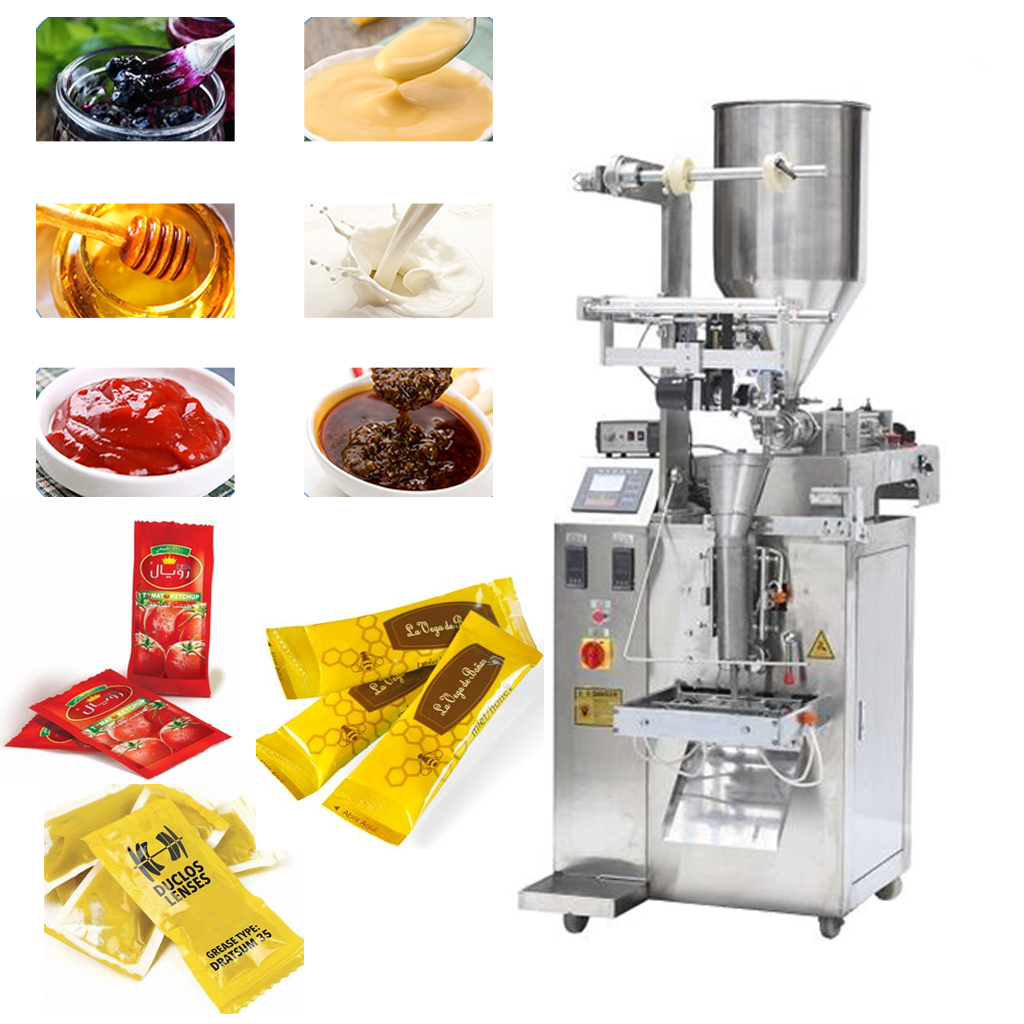

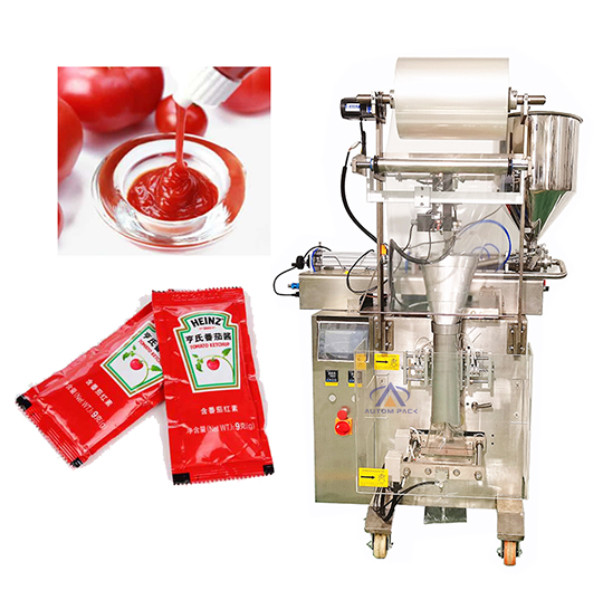

Full Automatic Aseptic Liquid Aluminium Sachet Packing Machine

  • Place of Origin: China
  • Brand Name: AUTOM
  • Certificate: CE/ISO/SGS
  • Model No: ATM-320L
  • Description: Full Automatic Aseptic Liquid Aluminium Sachet Packing Machine
  • INQUIRY   EMAIL


Full Automatic Aseptic Liquid Aluminium <a href=https://www.autompack.com/packing-machine/<a href=https://www.autompack.com/packing-machine/ATM-320L-Liquid-Packing-Machine.html target='_blank'>ATM-320L</a>-Liquid-Packing-Machine.html target='_blank'>Sachet</a> Packing Machine

Full Automatic Aseptic Liquid Aluminium <a href=https://www.autompack.com/packing-machine/<a href=https://www.autompack.com/packing-machine/ATM-320L-Liquid-Packing-Machine.html target='_blank'>ATM-320L</a>-Liquid-Packing-Machine.html target='_blank'>Sachet</a> Packing Machine

Automatic ATM-320L-Liquid-Packing-Machine.html target='_blank'>Sachet/ Pouch Liquid Packing Machine ATM-320L/ATM-380L

AUTOMPACK’s mission is to keep developing intelligent vertical packaging machines and offer full automatic packaging solutions. till nowadays, we already have successfully developed over 25types packaging machine included in pillow bag/gusset bag/quad seal bag/3 or 4 sides sealing bag, connected strip bag form fill seal bagger, a these equipment able to pack all different kinds of material such as most daily snacks, food, liquid, paste, Powder etc. forming and metal spares, high technical material, vegetable, etc. cover agriculture, industrial, manufacturing all sorts fields material and commodities to pack favorable through our vertical packing machine.

Technical Characteristics:

➣It is controlled by a micro computer,with touching the screen,and the operation is simple .

➣PLC computer system, function is more stable, adjust it with any parameters ,and don’t need to stop machine.

➣It can stock ten dispose, simple to change variety.

➣ Temperature independent control system, precision degree get to±1°C.

➣ Horizontal, vertical temperature control, suitable for various of mix composite film.

➣ Bag–making, sealing, packing, print date in one operation.

➣ Work circumstance quiet, low noise.

➣High precision structure for simple and easy operation and repair.

➣It’s owns simple circuitry and outstanding function.

➣Optional device: Linked-bags device, hole punching device, pneumatic type end sealing for good performance.

Application:

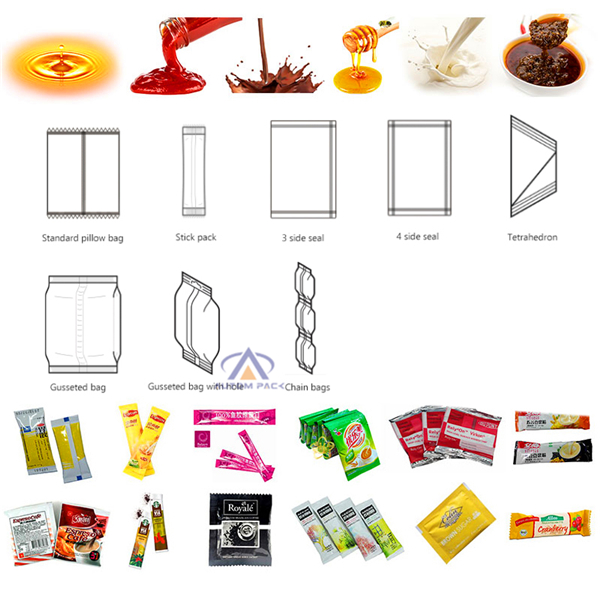

Suitable for packing for all kinds of liquid material which such as liquid milk, water, honey, juice, tomato paste, ketchup, sauce, oil,etc. Various bag types are available, e.g. back-sealing bag, 3 sides seal bag, 4 sides seal bag, stick bag, linking bags,etc.

➣Measuring range: 100---500ml (By changing liquid pump ).


Technical Parameters:

Model No.

ATM-320L

ATM-380L

Packing speed (bags/min)

15-80bags/min

15-80bags/min

Max width of packing film (mm)

80mm-320mm

180mm-380mm

Packing pouch size(mm)

(L): 50-200mm (W): 30-150mm

(L): 60-280mm (W): 60-180mm

Total power (kw)

2.2kw

2.5kw

Filling range(ml)

2-500ml

2-750ml

Max outside diameter of rolling film (mm)

≤φ300

≤φ320

Packing film thickness(mm)

0.05-0.10

0.04-0.10

Gross weight(kg)

350kg

450kg

Machine dimension(mm)

(L)970×(W)680×(H)1950mm

(L)1100x(W)800x(H)2150mm

Working voltage

220v 50hz

220v 50hz

Packing material applications

OPP, PE, PVC, OPP/CPP, OPP/PE, PET/VMPET/PE

OPP, PE, PVC, OPP/CPP, OPP/PE, PET/VMPET/PE

AUTOMPACK’s mission is to keep developing intelligent vertical packaging machines and offer full automatic packaging solutions. till nowadays, we already have successfully developed over 25 types packaging machine included in pillow bag/gusset bag/quad seal bag/3 or 4 sides sealing bag, connected strip bag form fill seal bagger, a these equipment able to pack all different kinds of material such as most daily snacks, food, Liquid, paste, Powder etc. forming and metal spares, high technical material, vegetable, etc. cover agriculture, industrial, manufacturing all sorts fields material and commodities to pack favorable through our vertical packing machine.
